8040 Ultrafiltration Membrane System For Waste Water Treatment

Name: 8040 Ultrafiltration Membrane System For Waste Water Treatment
Brand: Leader-t/OEM
Price: 1 USD

Quality 8040 Ultrafiltration Membrane System For Waste Water Treatment for sale

Brand Name : Leader-t/OEM

Model Number : LD-UF

Certification : CE,ISO9001,ISO 14001

Place of Origin : China

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 Sets /Month

Delivery Time : 5-8 Days

Packaging Details : Wooden /Box

Product name : UF membrane

Keywords : UF

gallons per day : 8040

Application : Commercial / Industrial water system

Testing PH Solution : Water Filter Parts

Capacity : 250L~10000L

Usage : Pure Water Process

Contact Now

Ultrafiltration Membrane For Waste Water Treatment

UF membrane features
(1) Good hydrophilicity
(2) Bursting strength: 1.3MPA
(3) Large flux with 90% fibers porosity
(4) Strong antioxidant ability
Membrane feature
(1) High interception rate: 99.9999%
(2) Max.inlet pressure: 0.2Mpa
(3) MWCO: 6000Dalton
(4) Application: Pharmaceutical industry to remove pyrogen,endotoxin
Applications: Natural water/rainwater purification, food and beverage water purification, reclaimed water reuse treatment, municipal sewage engineering, pretreatment of reverse osmosis, nanofiltration.

Specifications

Module	UF-4021	UF-4040	UF-8040
Size (mm)	Ø101×533.4	Ø101×1016	Ø201.9×1016
Module type	Inside-out	Inside-out	Inside-out
Shell and seal materials	PVC,epoxy resins	PVC,epoxy resins	PVC,epoxy resins
Membrane Material	PAN	PAN	PAN
Max operating pressure psi(Mpa)	43(0.3)	43(0.3)	43(0.3)
Suggest operating pressure psi(Mpa)	<15(0.1)	<15(0.1)	<15(0.1)
Max trans-membrane pressure psi(Mpa)	29(0.2)	29(0.2)	29(0.2)
Operating temperature	5~40℃	5~40℃	5~40℃
Effective membrane area	4m2	2m2	18m2
Design flux	40-150L/m2/h	40-150L/m2/h	40-150L/m2/h

Pictures

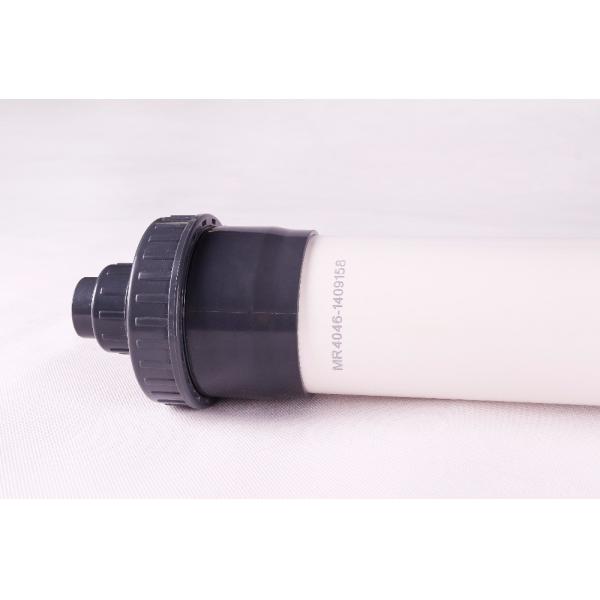

8040 Ultrafiltration Membrane System For Waste Water Treatment
